MegaTrack Series

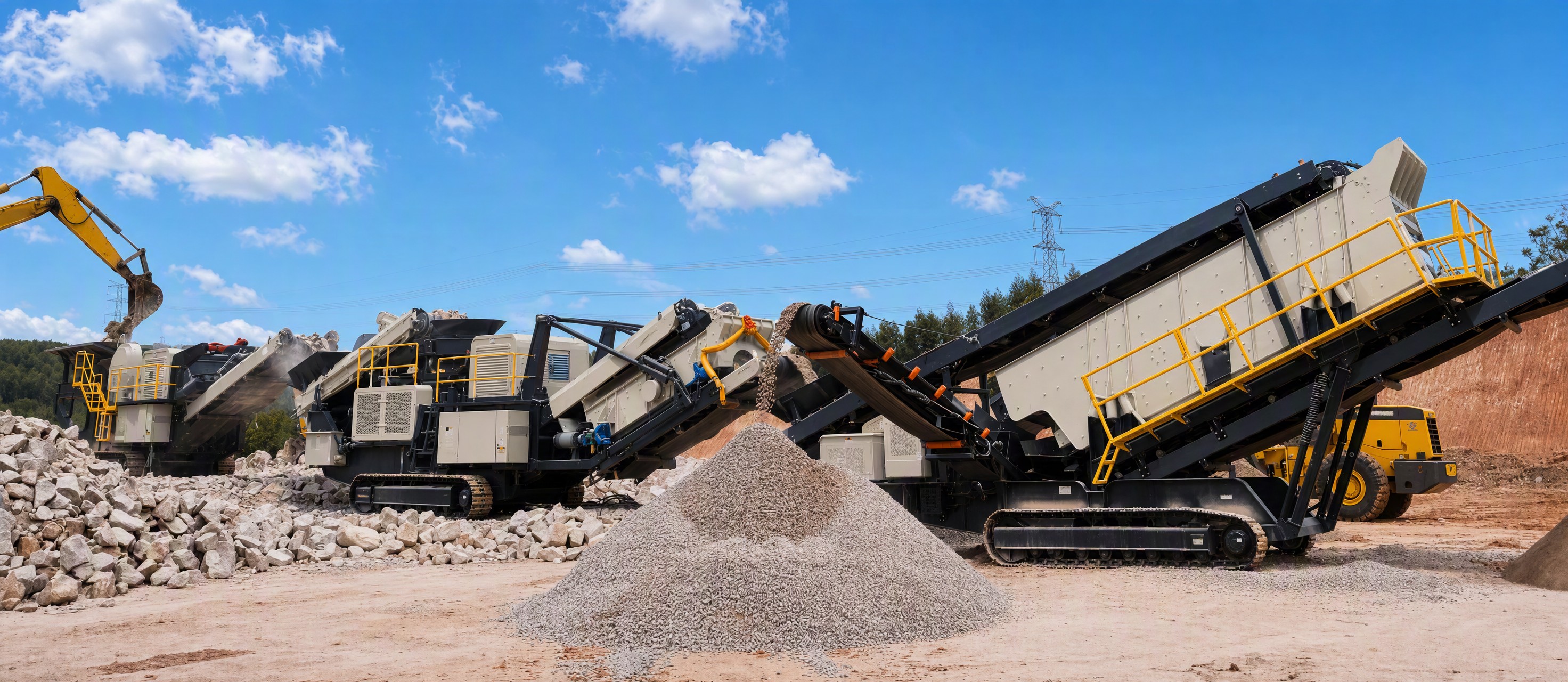

Bring the crushing plant to the site

MegaTrack stations travel on their own crawler tracks — no trailer, no foundation, no waiting. They crush, screen, and separate on-site, turning demolition debris, quarry overburden, and mine ore into saleable aggregate the same day they arrive.

🚜

Self-Propelled

Hydraulic crawler travel, remote-controlled positioning

⚡

Dual Power

Diesel-electric drive — diesel engine plus onboard generator

🏗️

No Foundation

Operating on any firm ground within 30 minutes of arrival

♻️

Rebar Separation

Magnetic belt removes steel scrap from recycled aggregate

Series 01

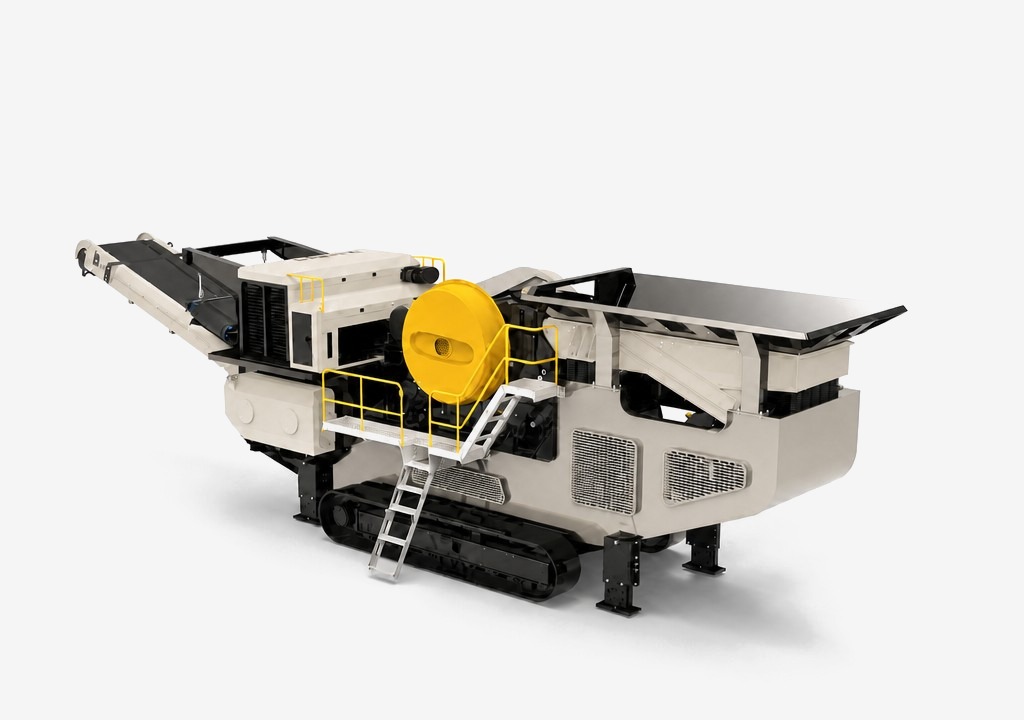

YMC — Crawler Jaw Crusher Station

Models: YMC80 · YMC96 · YMC106 · YMC116 · YMC120

The backbone of every MegaTrack fleet. C-Series jaw crushers handle the hardest demolition concrete, reinforced slabs, and blasted rock — feeding, crushing, and discharging on one self-contained tracked platform.

C Series Jaw
Hydraulic Feeder
Magnetic Separator
Side Discharge

Technical Specifications

Component	YMC80	YMC96	YMC106	YMC116	YMC120
Feeder
Model	GZD8035	GZD9638	GZD1142	GZD1142	GZD1242
Feeding height	2900 mm	3750 mm	3900 mm	3900 mm	3900 mm
Power	2×3.7 kW	2×5.5 kW	2×5.5 kW	2×5.5 kW	2×7.5 kW
Jaw Crusher
Model	C80	C96	C106	C116	C120
Motor power	55 kW	90 kW	110 kW	132 kW	160 kW
Main Discharge Belt
Size (W×L)	800×9000	1000×12000	1000×12000	1200×13000	1200×13000 mm
Unloading height	2400 mm	2900 mm	2900 mm	3200 mm	3200 mm
Power	7.5 kW	11 kW	11 kW	15 kW	15 kW
Side Discharge Belt
Size (W×L)	500×3800 mm (all models)
Unloading height	1800 mm (all models)
Power	3 kW (all models)
Engine
Primary power	163 kW	225 kW	310 kW	310 kW	403 kW
Standby power	180 kW	250 kW	345 kW	345 kW	448 kW
Structure	In-line 6-cyl	V-type 6-cyl	V-type 6-cyl	V-type 6-cyl	V-type 8-cyl
Generator
Primary power	150 kW	200 kW	280 kW	280 kW	360 kW
Standby power	165 kW	220 kW	300 kW	300 kW	390 kW
Transport Dimensions
Length	12500 mm	14500 mm	15000 mm	15000 mm	15500 mm
Width	2850 mm	2950 mm	3000 mm	3200 mm	3200 mm
Height	3550 mm	3550 mm	3600 mm	3600 mm	3700 mm
Capacity
Throughput	80–125 t/h	100–250 t/h	160–360 t/h	200–450 t/h	300–520 t/h

Note: output capacity varies with material type and feed size. Diesel-electric drive (diesel engine + electric generator) on all models. We reserve the right to change technical parameters without prior notice; weight and dimensions are subject to the actual unit delivered.

Series 02

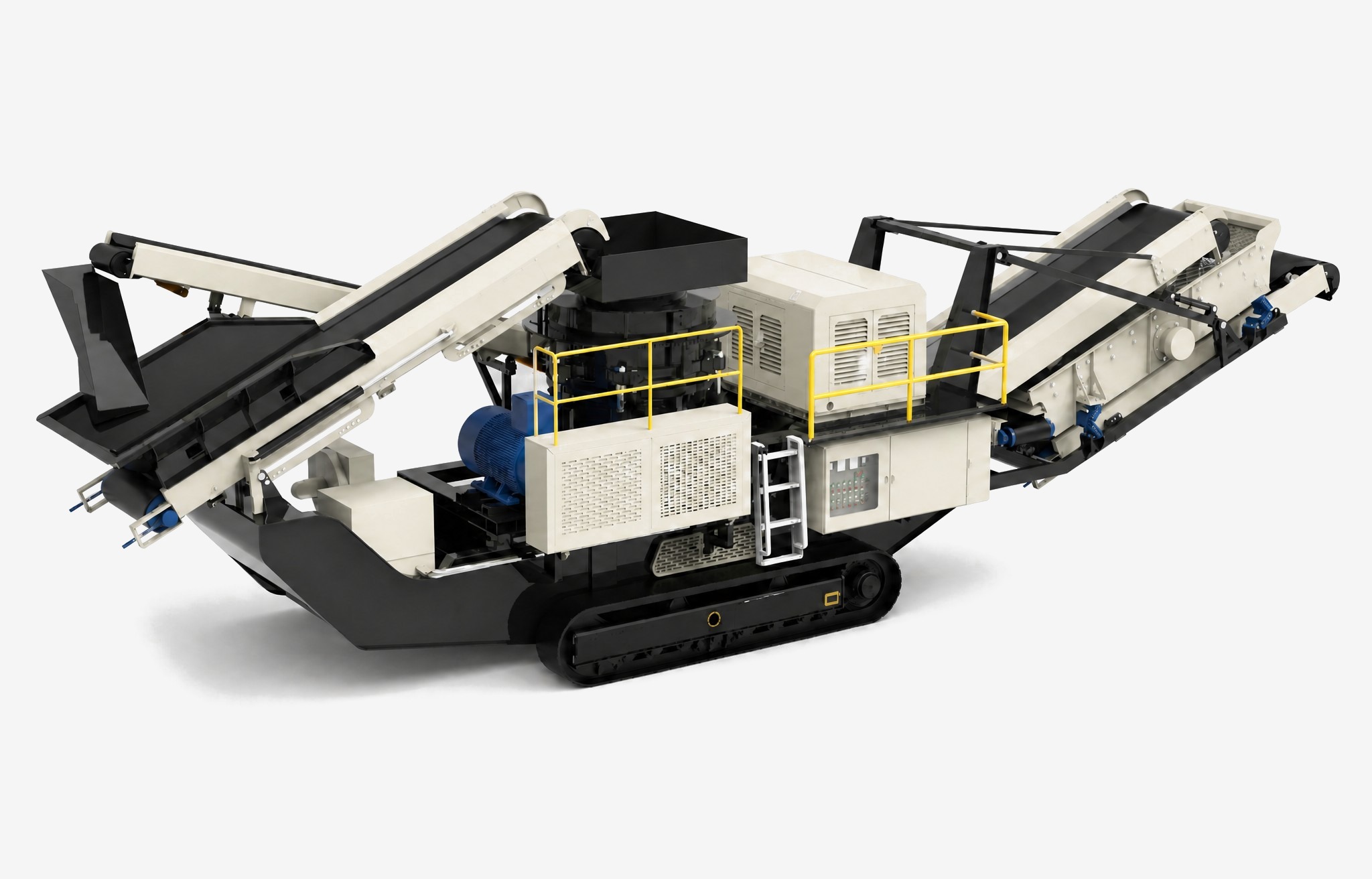

YMH — Crawler Cone Crusher Station

Models: YMH20S · YMH20 · YMH30S · YMH30 · YMH40S · YMH40

Multi-cylinder hydraulic cone crushers deliver high-efficiency secondary and tertiary crushing with uniform particle shape. The "S" versions add a full screening module — screen, return belt, and side discharge built into the same tracked chassis.

HP Hydraulic Cone
Full Hydraulic Adjustment
S Models with Screen
Return Belt Closed Loop

Technical Specifications

Component	YMH20S	YMH20	YMH30S	YMH30	YMH40S	YMH40
Belt Feeder
Specification	1000×7000 mm		1000×7000 mm		1200×8000 mm
Feeding height	2580 mm		2580 mm		2680 mm
Power	11 kW		11 kW		15 kW
Cone Crusher
Model	HP200	HP200	HP300	HP300	HP400	HP400
Power	160 kW	160 kW	250 kW	250 kW	280 kW	280 kW
Main Discharge Belt
Size (W×L)	1000×9500	1000×10000	1000×9500	1000×10000	1200×12000	1200×10000 mm
Unloading height	2800 mm	2500 mm	2800 mm	2500 mm	2900 mm	2800 mm
Power	11 kW	11 kW	11 kW	11 kW	15 kW	15 kW
Inspection Screen (S models)
Model	2YK1436	—	2YK1436	—	2YK1545	—
Power	2×3.7 kW	—	2×3.7 kW	—	2×5.5 kW	—
Discharge Belt Under Screen (S models)
Size (W×L)	1200×6500 mm			—	1200×6500 mm
Unloading height	2600 mm			—	2600 mm
Power	7.5 kW			—	7.5 kW
Transition Belt 1 & 2 (S models)
Size (W×L)	500×2000 mm			—	650×2000 mm
Power	2.2 kW			—	2.2 kW
Screen Front Side Discharge Belt (S models)
Size (W×L)	500×4500 mm			—	650×4500 mm
Unloading height	2000 mm			—	2000 mm
Power	3 kW			—	3 kW
Return Belt Conveyor (S models)
Size (W×L)	500×8200 mm			—	650×9200 mm
Power	4 kW			—	4 kW
Engine
Primary power	310 kW	310 kW	448 kW	448 kW	574 kW	574 kW
Standby power	345 kW	345 kW	490 kW	490 kW	634 kW	634 kW
Structure	V-type 8-cyl	V-type 8-cyl	V-type 8-cyl	V-type 8-cyl	In-line 6-cyl	In-line 6-cyl
Generator
Primary power	310 kW	400 kW	400 kW	400 kW	520 kW	520 kW
Standby power	345 kW	440 kW	440 kW	440 kW	570 kW	570 kW
Transport Dimensions
Length	17000 mm	16400 mm	17800 mm	17400 mm	22000 mm	20000 mm
Width	3300 mm	2950 mm	3500 mm	3300 mm	3750 mm	3500 mm
Height	3700 mm	3600 mm	3750 mm	3800 mm	4100 mm	3800 mm
Capacity
Throughput	100–225 t/h	—	150–380 t/h	—	200–450 t/h	—

Note: "S" models integrate a screening module. Capacity varies with material type and feed size. We reserve the right to change technical parameters without prior notice; weight and dimensions are subject to the actual unit delivered.

Series 03

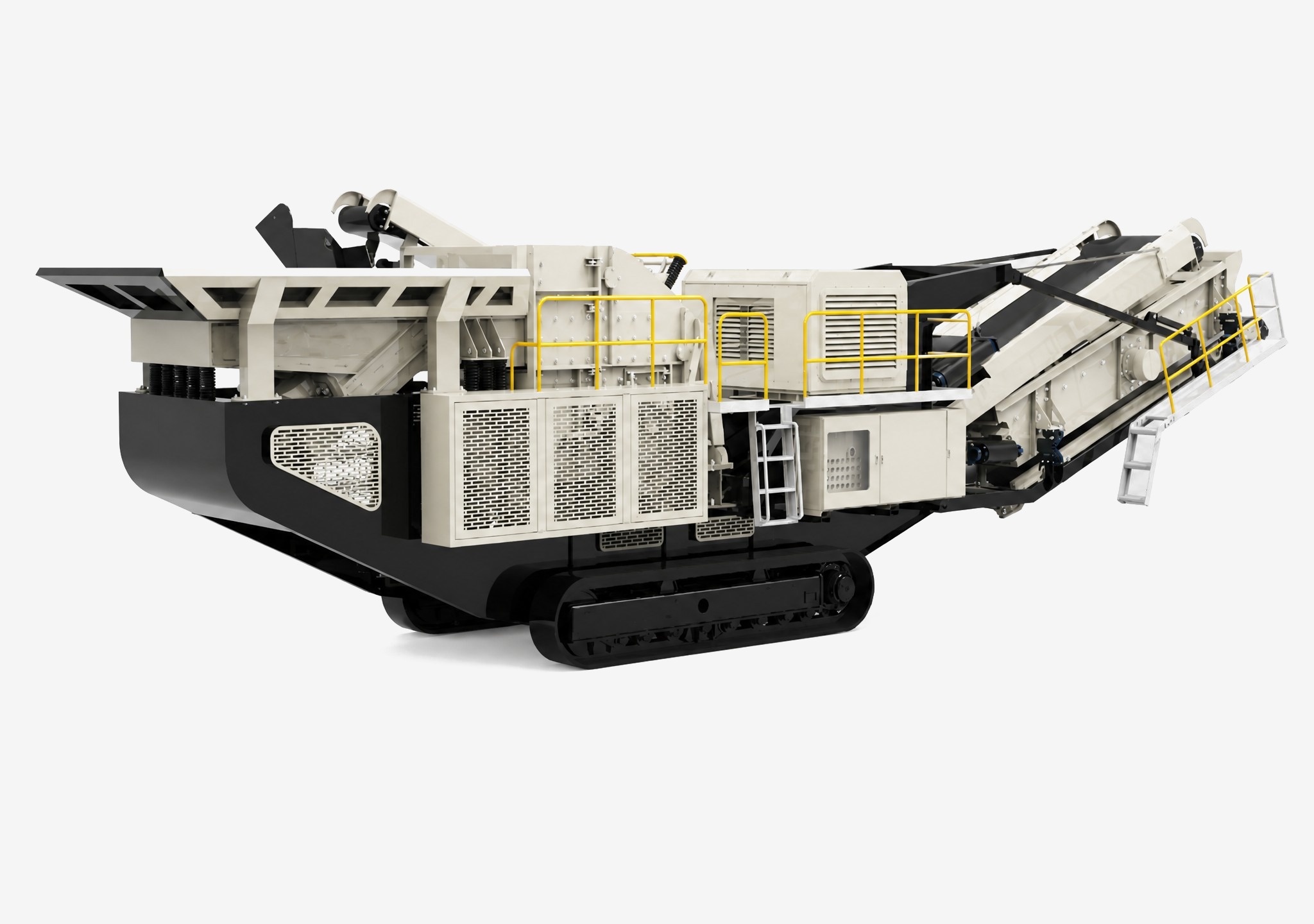

YMCI — Crawler Impact Crusher Station

Models: YMCI10S · YMCI12S · YMCI12 · YMCI13S · YMCI13

Impact crushers are the recycling specialist — ideal for concrete, asphalt, and softer rock where a cubical, adjustable product shape matters. Closed-circuit "S" versions screen and return oversize material automatically.

CI Impact Rotor
Adjustable Product Shape
Closed-Circuit Option
Concrete & Asphalt Recycling

Technical Specifications

Component	YMCI10S	YMCI12S	YMCI12	YMCI13S	YMCI13
Feeder
Model	GZD9538	GZD1135	GZD1135	GZD1235	GZD1235
Feeding height	3350 mm	3750 mm	3750 mm	3780 mm	3780 mm
Power	2×5.5 kW	2×5.5 kW	2×5.5 kW	2×7.5 kW	2×7.5 kW
Impact Crusher
Model	CI1110	CI1213	CI1213	CI1313	CI1313
Power	160 kW	200 kW	200 kW	250 kW	250 kW
Main Discharge Belt
Size (W×L)	1000×10000 mm (all models)
Unloading height	3150 mm (all models)
Power	11 kW	11 kW	11 kW	15 kW	15 kW
Side Discharge Belt
Size (W×L)	500×3800 mm (all models)
Unloading height	2200 mm (all models)
Power	3 kW (all models)
Inspection Screen (S models)
Model	2YK1436	2YK1436	—	2YK1436	—
Power	2×3.7 kW	2×3.7 kW	—	2×3.7 kW	—
Discharge Belt Under Screen (S models)
Size (W×L)	1200×6500 mm			1200×6500 mm
Unloading height	2600 mm			2600 mm
Power	7.5 kW			7.5 kW
Transition Belt 1 & 2 (S models)
Size (W×L)	500×2000 mm			500×2000 mm
Power	2.2 kW			2.2 kW
Screen Front Side Discharge Belt (S models)
Size (W×L)	500×4500 mm			500×4500 mm
Unloading height	2000 mm			2000 mm
Power	3 kW			3 kW
Return Belt Conveyor (S models)
Size (W×L)	500×8200 mm	500×8200 mm	—	500×8600 mm	—
Power	4 kW	4 kW	—	4 kW	—
Engine
Primary power	330 kW	440 kW	440 kW	440 kW	440 kW
Standby power	360 kW	484 kW	484 kW	484 kW	484 kW
Structure	In-line 6-cylinder (all models)
Generator
Primary power	300 kW	400 kW	400 kW	400 kW	400 kW
Standby power	330 kW	440 kW	440 kW	440 kW	440 kW
Transport Dimensions
Length	16500 mm	17500 mm	14500 mm	18500 mm	17500 mm
Width	3400 mm	3580 mm	3350 mm	3650 mm	3450 mm
Height	3700 mm	3850 mm	3850 mm	3900 mm	3900 mm
Capacity
Throughput	100–200 t/h	150–300 t/h	150–300 t/h	220–500 t/h	220–500 t/h

Series 04

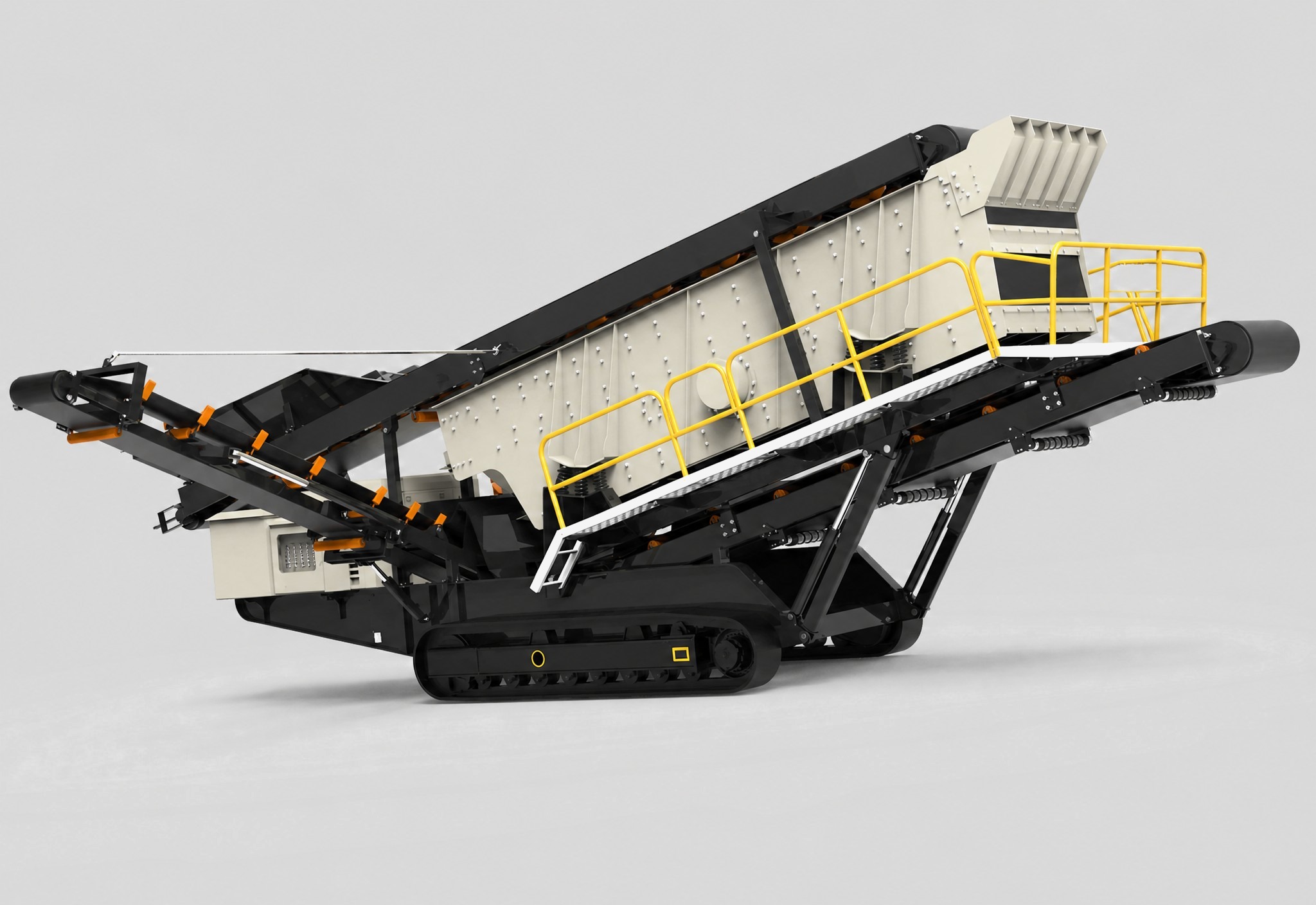

YMS — Crawler Screening Station

Models: YMS12 · YMS15T · YMS15 · YMS18T · YMS18 · YMS20T · YMS20 · YMS24D

Standalone tracked screening plants that classify crushed material into multiple grades on site. Up to three discharge belts feed stockpiles around the station while the underscreen belt collects fines — a complete aggregate sorting system on tracks.

Up to 3-Deck Screen
Triple Discharge
Underscreen Fines Belt
Transfer Belt Option

Technical Specifications

Component	YMS12	YMS15T	YMS15	YMS18T	YMS18	YMS20T	YMS20	YMS24D
Vibrating Screen
Model	3YK1237	2YK1548	3YK1548	2YK1860	3YK1860	2YK2060	3YK2060	3YK2460
Power	2×5.5 kW	2×7.5 kW	2×7.5 kW	2×9.5 kW	2×9.5 kW	2×11 kW	2×11 kW	2×15 kW
Feeding Belt Conveyor
Size (W×L)	800×9000	1000×11000	1000×11000	1000×15000	1000×15000	1000×15000	1000×15000	1200×15000 mm
Unloading height	3800 mm	3900 mm	4200 mm	4200 mm	4500 mm	4200 mm	4200 mm	4500 mm
Power	5.5 kW	11 kW	11 kW	11 kW	11 kW	15 kW	15 kW	22 kW
Layer 1 Discharge Belt
Size (W×L)	500×5500	500×6500	500×6500	500×6500	500×6500	650×7500	650×7500	650×7500 mm
Unloading height	2800 mm (all models)
Power	3 kW	4 kW	4 kW	4 kW	4 kW	4 kW	4 kW	4 kW
Layer 2 Discharge Belt
Size (W×L)	500×6500	500×7500	500×7500	500×7500	500×7500	650×7500	650×7500	650×7500 mm
Unloading height	2600 mm	3200 mm
Power	3 kW	4 kW	4 kW	4 kW	4 kW	4 kW	4 kW	4 kW
Layer 3 Discharge Belt
Size (W×L)	500×6500	—	500×7500	—	500×7500	—	650×7500	650×7500 mm
Unloading height	2600 mm	—	3200 mm	—	3200 mm	—	3200 mm	3200 mm
Power	3 kW	—	4 kW	—	4 kW	—	4 kW	4 kW
Transfer Belt
Size (W×L)	500×2500	—	500×2500	—	500×2800	—	650×2800	650×2800 mm
Power	2.2 kW	—	2.2 kW	—	2.2 kW	—	2.2 kW	2.2 kW
Underscreen Belt
Size (W×L)	800×6500	800×8500	800×8500	1000×10000	1000×10000	1000×10000	1000×10000	1200×10000 mm
Unloading height	2800 mm	3200 mm	3200 mm	3700 mm
Power	4 kW	5.5 kW	5.5 kW	7.5 kW
Engine
Primary power	110 kW	138 kW	138 kW	138 kW	138 kW	163 kW	163 kW	163 kW
Standby power	121 kW	152 kW	152 kW	152 kW	152 kW	180 kW	180 kW	180 kW
Structure	In-line 6-cylinder (all models)
Generator
Primary power	100 kW	120 kW	120 kW	120 kW	120 kW	150 kW	150 kW	150 kW
Standby power	110 kW	130 kW	130 kW	130 kW	130 kW	165 kW	165 kW	165 kW
Transport Dimensions
Length	13000 mm	14000 mm	14000 mm	15500 mm	15500 mm	15500 mm	15500 mm	15500 mm
Width	2900 mm	3200 mm	3200 mm	3400 mm	3400 mm	3600 mm	3600 mm	3900 mm
Height	3400 mm	3400 mm	3600 mm	3600 mm	3800 mm	3600 mm	3800 mm	3900 mm
Capacity
Throughput	60–150 t/h	120–250 t/h	120–250 t/h	150–350 t/h	150–350 t/h	200–400 t/h	200–400 t/h	—

Note: capacity varies with material type and feed size. We reserve the right to change technical parameters without prior notice; weight and dimensions are subject to the actual unit delivered.

Core technology across the family

C-Series Jaw Crushers

Excellent capacity performance with a lighter frame and longer service life. Optimized crushing chamber geometry delivers high reduction ratios on the hardest demolition concrete and rock.

Multi-Cylinder Hydraulic Cone

Full hydraulic adjustment for convenient setting changes, optimized structure, high efficiency with lower energy consumption, and uniform particle shape in secondary applications.

New-Generation Vibrating Screen

Small amplitude with high screening efficiency, strong vibration force, and self-cleaning screen surface — reliable classification even with sticky or damp recycled material.
