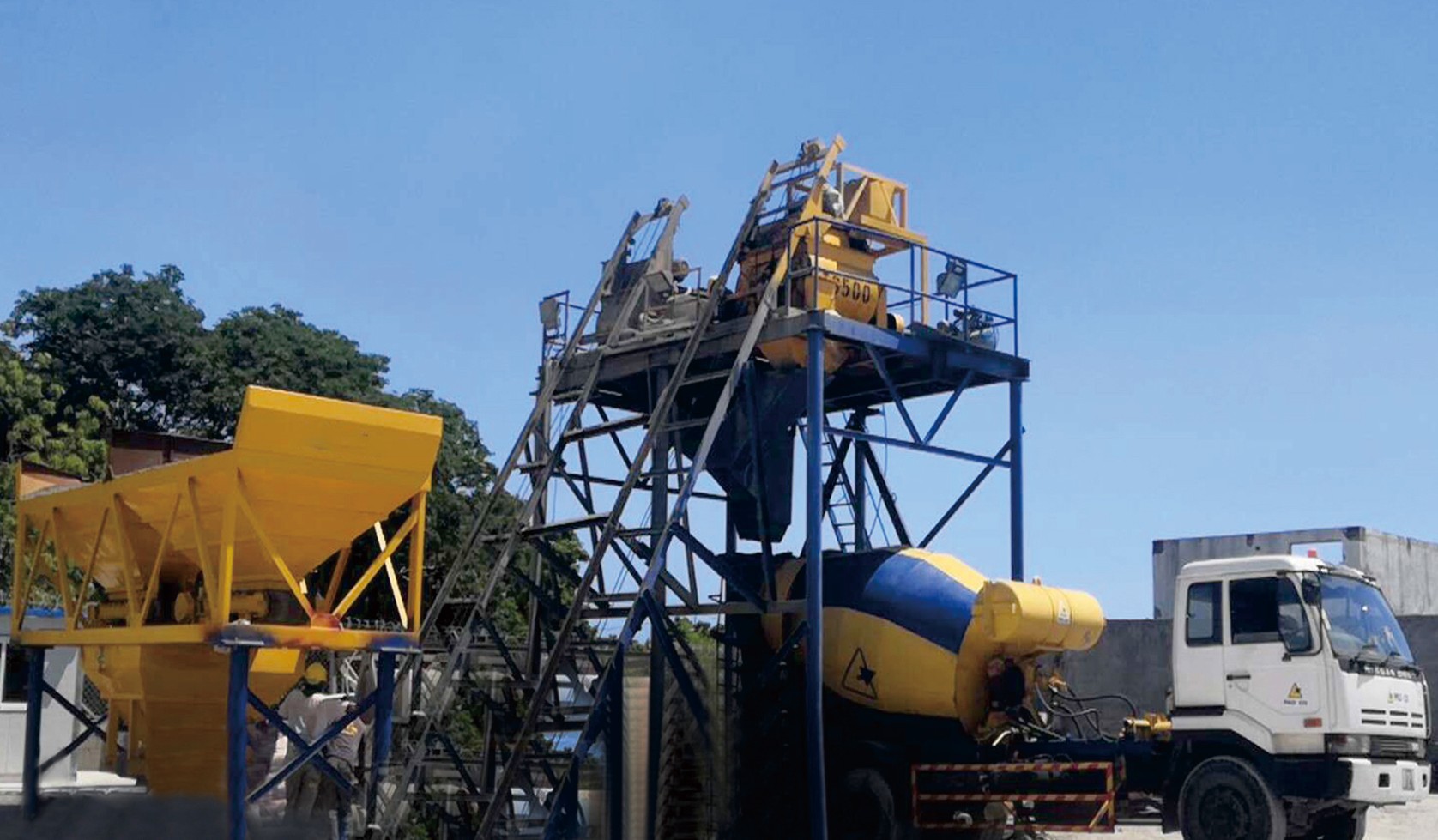

The HZS25 is our entry-level stationary batching plant — engineered for reliable performance in precast concrete yards, small construction sites, and rural infrastructure projects. Compact footprint, quick installation, and factory-direct pricing make it the ideal choice for businesses starting their batching operations.
Small site requirement — installs in tight spaces where larger plants cannot fit. Ideal for urban and confined job sites.
Bolt-together modular structure. No heavy welding required on site. Ready to batch within days, not weeks.
Simple mechanical design with accessible wear parts. Low total cost of ownership and minimal downtime.
Electronic load-cell weighing system for cement, aggregate, and water — consistent mix quality every batch.
All components fit standard 40ft containers — reducing shipping costs to any port worldwide.
Manufactured end-to-end in our own factory. Full quality control from raw material to final assembly.
| Model | HZS25 |
| Theoretical Productivity | 25 m³/h |
| Mixer Model | JS500 Twin-Shaft |
| Mixer Power | 18.5 kW |
| Mixing Cycle | 72 s |
| Mixer Nominal Capacity | 500 L |
| Max Aggregate Size | Φ80 mm |
| Batching Machine | PLD800 (2-bin, cumulative weighing) |
| Aggregate Bin Capacity | 2 × 2.5 m³ |
| Aggregate Types | 2 |
| Belt Conveyor Capacity | 100 t/h |
| Screw Conveyor | LSY219, capacity 40 t/h, 11 kW |
| Cement Silo | 50T (panel-type, electric dust removal, safety valve) |
| Aggregate Weighing | 0–3000 kg, accuracy ±2% |
| Cement Weighing | 0–1500 kg, accuracy ±1% |
| Water Weighing | 0–600 kg, accuracy ±1% |
| Additive Weighing | 0–150 kg, accuracy ±1% |
| Discharge Height | 1.5 m |
| Installed Power | 65 kW |
| Control System | PLC automatic, PC with printing (CN/EN) |
| Air Compressor | 4 kW (Shanghai Jaguar) |
| Compliance | GB/T 10171-2005 |
