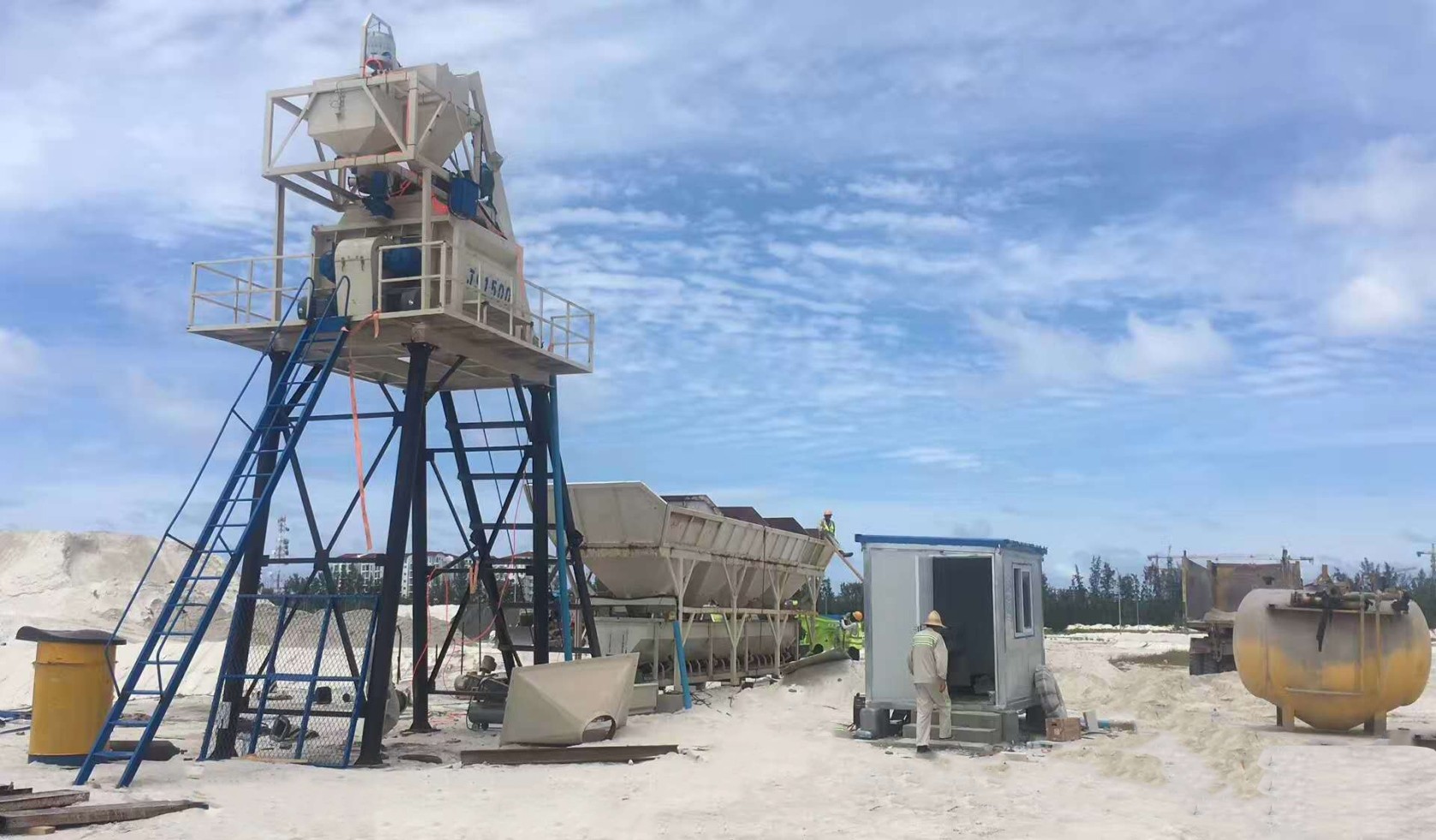

The HZS60 delivers 60 m³/h with the JS1000 twin-shaft mixer and PLD1600 batching system — a proven combination for commercial concrete supply, bridge and road infrastructure, and high-volume precast manufacturing.
1 m³ discharge per cycle. Heavy-duty twin-shaft design with chromium carbide wear plates for extended service life.
PLD1600 with 3 aggregate bins delivers continuous material flow — minimal loader downtime between cycles.
Comes with 80T cement silo as standard. Panel-type construction with integrated dust collector and safety valves.
Full-function control system with dual-display workstation. Production scheduling, mix formula management, and batch reporting.
Can be configured with two JS1000 mixers for higher throughput. Modular upgrade path protects your investment.
Optimized modular packing for cost-effective international shipping. Clear assembly documentation included.
| Model | HZS60 |
| Theoretical Productivity | 60 m³/h |
| Mixer Model | JS1000 Twin-Shaft |
| Mixer Power | 2 × 18.5 kW |
| Mixing Cycle | 60 s |
| Mixer Nominal Capacity | 1000 L |
| Max Aggregate Size | Φ80 mm |
| Batching Machine | PLD1600 (3-bin, cumulative weighing) |
| Aggregate Bin Capacity | 3 × 5 m³ |
| Aggregate Types | 3 |
| Belt Conveyor Capacity | 200 t/h |
| Screw Conveyor | LSY273, capacity 60 t/h, 15 kW |
| Cement Silo | 80T (panel-type) × 2 optional |
| Aggregate Weighing | 0–4000 kg, accuracy ±2% |
| Cement Weighing | 0–2500 kg, accuracy ±1% |
| Water Weighing | 0–1000 kg, accuracy ±1% |
| Additive Weighing | 0–200 kg, accuracy ±1% |
| Discharge Height | 4.0 m |
| Installed Power | 115 kW |
| Control System | PLC automatic with production management software |
